Auto Focus Head
Complete Head Assembly
| Part No. |
Reference |
Description |
| PLMDL0010 |
924694 |
Motor-Driven Non-Contact Head, 5.0" / 7.5" FL (1.5" / 2.0" Dia. Lens) |
Note: The complete Auto Focus Head assembly is not available for sale from Laser Mech RPS.
This number is provided for reference only.

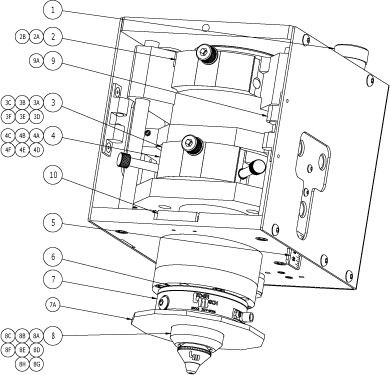

Head Sub-Assembly
|
Item |
Part No. |
Reference |
Description |
|
1 |
PLCON0025 |
|
Connector Assembly |
|
2 |
PLEMS0018 |
924742 |
Empty Manifold Seal |
|
2A |
PLMSR0012 |
912777 |
Manifold Seal Ring |
|
2B |
PLAJS0015 |
|
Locking Screw – Front Adjusting Lens Holder |
|
3 |
PLALH0088 |
924709 |
1.5" Lens Holder |
|
3A |
PLLRN0002 |
909320 |
1.5" Lens Retainer Nut |
|
3B |
PLLOR0001 |
912778 |
1.5" Lens O-ring |
|
3C |
PLLSR0001 |
909321 |
1.5" Lens Seal Ring |
|
3D |
PLMSR0012 |
912777 |
Manifold Seal Ring |
|
3E |
PLAJS0003 |
|
Lens Adjuster Screw |
|
3F |
PLAJS0015 |
|
Locking Screw – Front Adjusting Lens Holder |
|
4 |
PLALH0089 |
924710 |
2.0" Lens Holder |
|
4A |
PLLRN0023 |
|
2.0" Lens Retainer Nut |
|
4B |
PLLOR0002 |
922487 |
2.0" Lens O-ring |
|
4C |
PLLSR0003 |
922474 |
2.0" Lens Seal Ring |
|
4D |
PLMSR0012 |
912777 |
Manifold Seal Ring |
|
4E |
PLAJS0003 |
|
Lens Adjuster Screw |
|
4F |
PLAJS0015 |
|
Locking Screw – Front Adjusting Lens Holder |
|
5 |
PLLAB0003 |
|
Vertical Scale |
|
6 |
PLMOR0001 |
|
O-ring for Tip Adapter Flange |
| Capacitive Tip Assembly Components |
|
7 |
PLTRA0346 |
923257 |
Tip Assembly With Shield (See Item 8 for details) |
|
7A |
PLSLD0002 |
923381 |
Rapid Pierce Shield |
|
8 |
PLTRA0328 |
|
Height Sensing Tip Without Shield |
|
8A |
PLTRA0159 |
923843 |
Top-Threaded Retainer Ring |
|
8B |
PLSCR0016 |
|
4-40 x 0.25" SHSS |
|
8C |
PLISR0009 |
923631 |
Copper-Lined Insulator Hub |
|
8D |
PLFRK0011 |
923411 |
Field Repair Kit |
|
8E |
PLTOR0007 |
|
Tip Assembly O-ring |
|
8F |
PLTRA0321 |
923021 |
Tip Retainer Nut |
|
8G |
PLTRA0163 |
925284 |
Tip Retainer Nut for High Capacitance Nozzles (Not Shown) |
|
8H |
PLGJT0039 |
909660 |
0.060" Orifice Non-Contact Nozzle |
|
9 |
PLHDW0007 |
|
Ball-Style Tension Catch |
|
9A |
PLSCR0048 |
|
4-40 x 0.125" FHCS |
|
10 |
PLSWK0017 |
|
Magnetic Door Switch Assembly |
Additional Tools & Accessories (Not Shown)
| Part No.
| Reference
| Description
|
| PLKIT0038 |
|
MDL0010 Ball Screw Assembly Kit |
| PLLIT0017 |
925210 |
1.5" / 2.0" Lens Insertion Tool |
| PLSPW0018 |
923890-X |
Tip Spanner Wrench |
| PLTTW0002 |
909654/922686 |
Tip Transformer Wire – 4.5" Long (White) |
| PLTTW0015 |
842951 |
Tip Transformer Wire – 5.5" Long (Brown) |
| Click here to view more accessories. |
Rental heads and repair service available upon request.
